Application
A Euro profile cylinder with a key on one side typically refers to a half cylinder (operated by a key on the exterior and blank/flat on the interior) or a key-and-knob cylinder (key on the outside and a thumb-turn knob on the inside)
Product specification
CYL-156
Euro Profile Half Cylinder Regular Key One side Key
4 specifications Technical diagram OEM Ready
Request OEM Quote →
Product overview
Euro Profile Half Cylinder Regular Key One side Key
View product material, finish, specification, line diagram and technical details.
CYL-156
High Quality Euro Profile Cylinder Locks

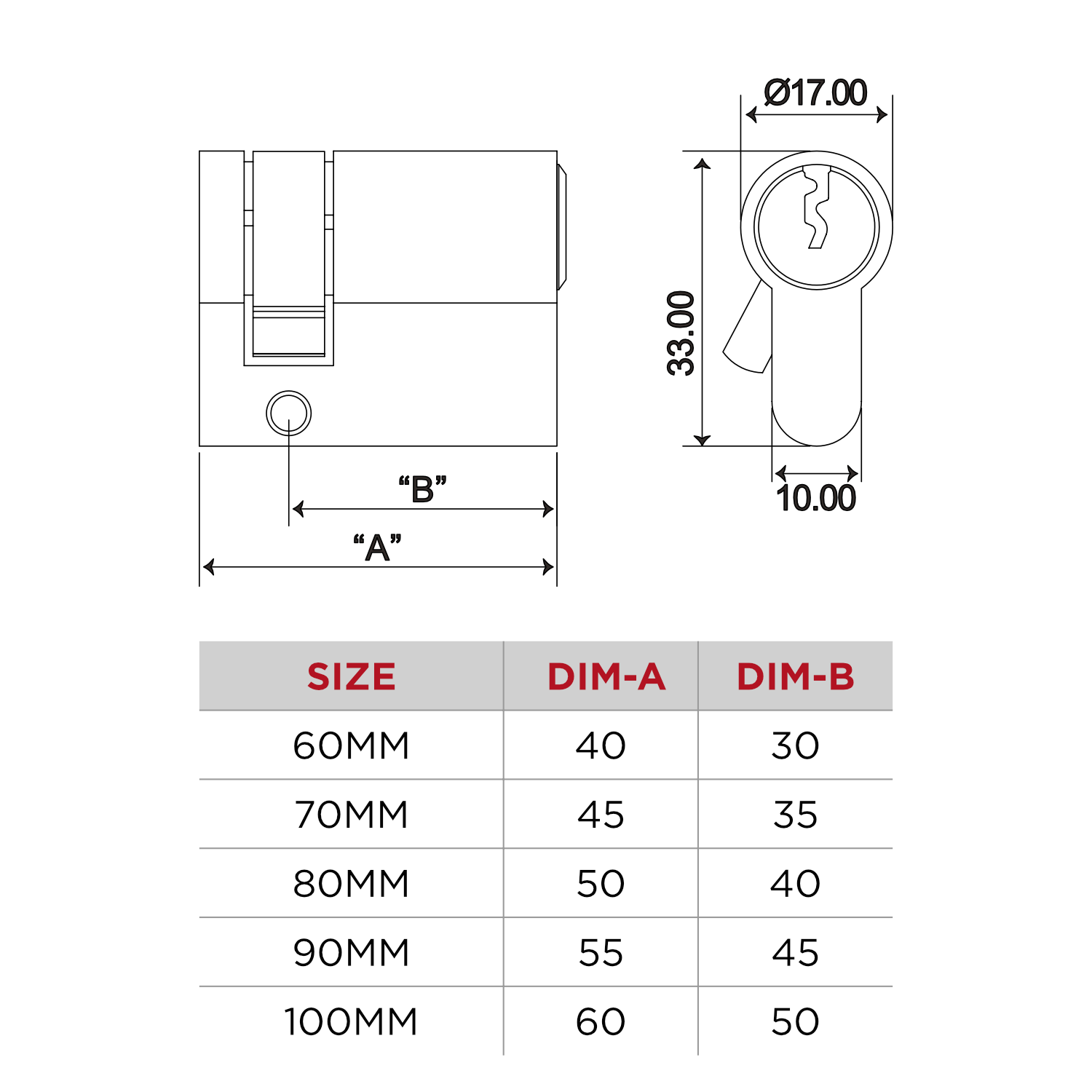

Technical diagrams
Line diagram, drawing and reference visuals
Technical specification
Specification table
Material
Housing Body | Brass |
Plug | Barrel | Brass |
Key | Brass 3 Key 2.2mm |
Spindle | NA |
Knob | NA |
Production Capacity
- +100000 Cylcle tested
- Acetone Test Passed 1000+
- SST Passed
- Pencile Hardness Passed 4H+
Reference Standard
Follow BS EN 1303:2005
| 1 | 6 | - | 0 | - | A | 5 | 0 |
Note : Euro Profile Cylinder are manufactured in compliance with BSEN 12209:2003 Standard
Features
• SUITABLE FOR 35-125MM THICK DOOR
• SUITABLE FOR WOODEN AND METAL DOOR
• 6 PIN EURO PROFILE CYLINDER
• 2 LEVEL OF MASTER KEYING SYSTEM
• FULLY BRASS CYLINDER
• HIGHLY DURABLE - 96 HR CORROSIVE
• REGULAR KEY COMBINATION AVAILABLE 15000+
• REGULAR KEY COMES WITH 5 KEY (2.3MM THICK)
Finish / material
SS | AB | BLK | RG | GOLD | PVD Finish
Branding / packing
As per Customer Requirement
