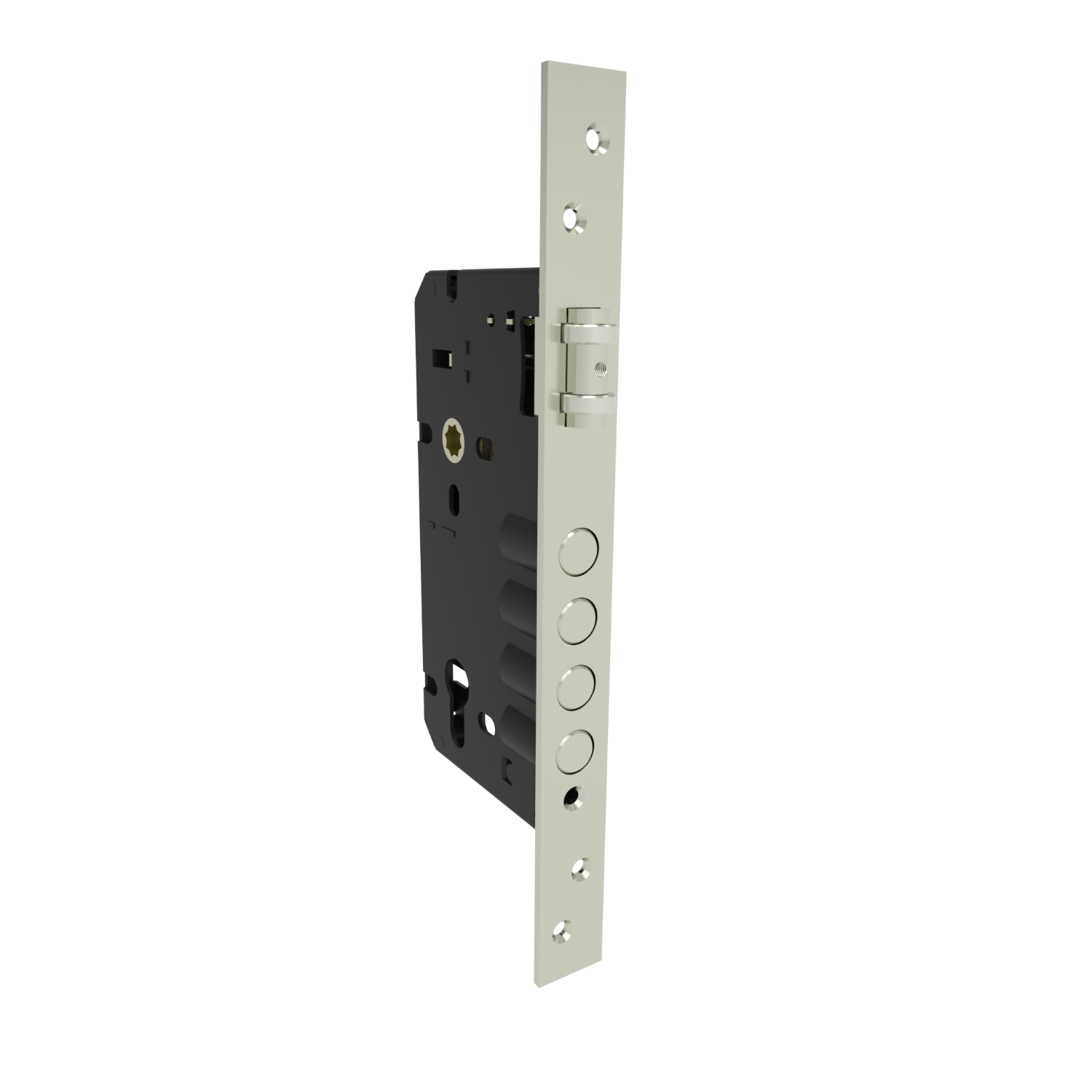

ML-114 RL

60x85 4 Bullet Roller Latch

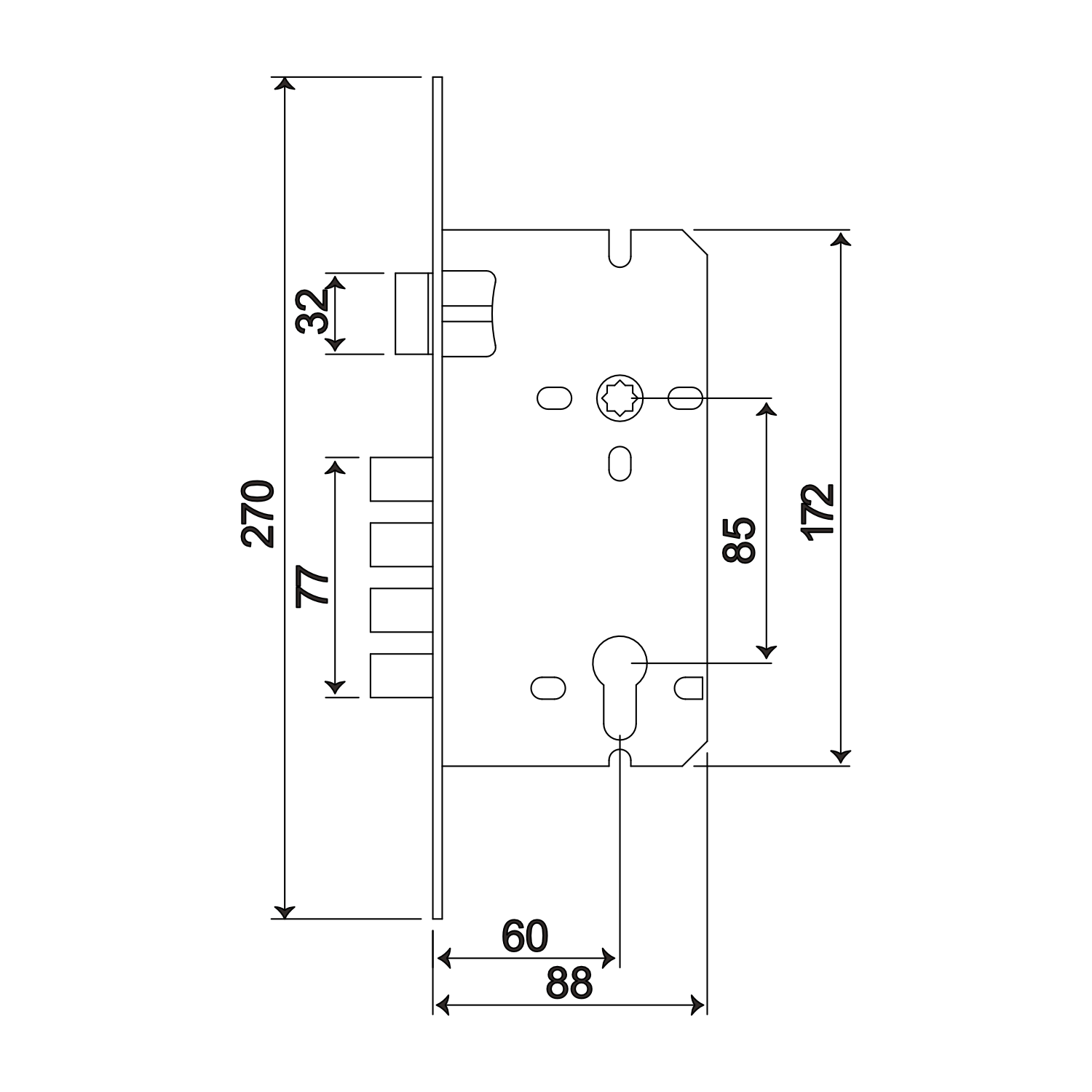

270mm 4 Bullet 60x85 Mortise Lock with Roller Latch

Material

Front Plate	SS-202 | SS-304
Striker Plate	SS-202 | SS-304
Deadbolt	SS-304
Latch	ZAMAK-3 & SS-304
Follower	Brass | Mild Steel | ZAMAK-3

Production Capacity

• +100000 Cylcle tested
• Acetone Test Passed 1000+
• SST Passed
• Pencile Hardness Passed 4H+

Reference Standard

Follow BS EN 12209:2003

2

B

7

0

0

C

3

B

C

2

0

Note : Mortise lock are manufactured in compliance with BSEN 12209:2003 Standard

Feature

• Suitable for 35-50 mm Thick Door
• Suitable for Wooden and Metal Door
• Latch Operated by Handle or Cylinder
• 85mm Center Back-set in 60mm
• Roller Latch in Solid SS-304 Material 4 Bullet
• Double throw Deadbolt in Solid 4bullet SS-304 with 20mm Projection
• Suitable for Sprung and Un Sprung Lever Handle

Application

Residential Entry Doors: Provides strong main-door security using integrated deadbolts and levers.

Finish

SS | AB | Black | RG | Gold | PVD Finishes

Branding

As Per Customer Standard
