Product specification

ML-122

50x85 Plain Bullet Double Door Lock

4 specifications Technical diagram OEM Ready

Request OEM Quote →

Product overview

Mortise Lock 50x85 Plain Bullet Double Door Mortise Lock

View product material, finish, specification, line diagram and technical details.

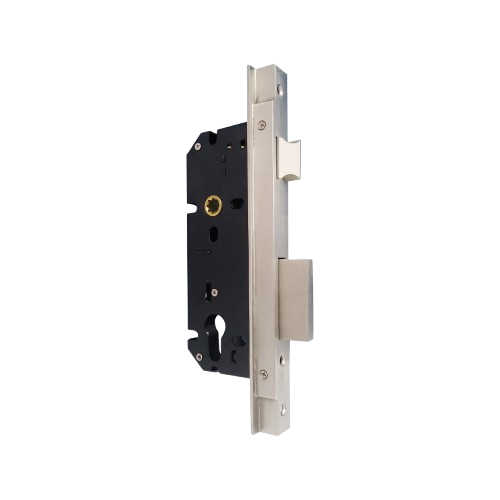

240mm Plain Bullet 50x85 Double Door Mortise Lock

ML-122 Mortise Lever Lock Body & Cases

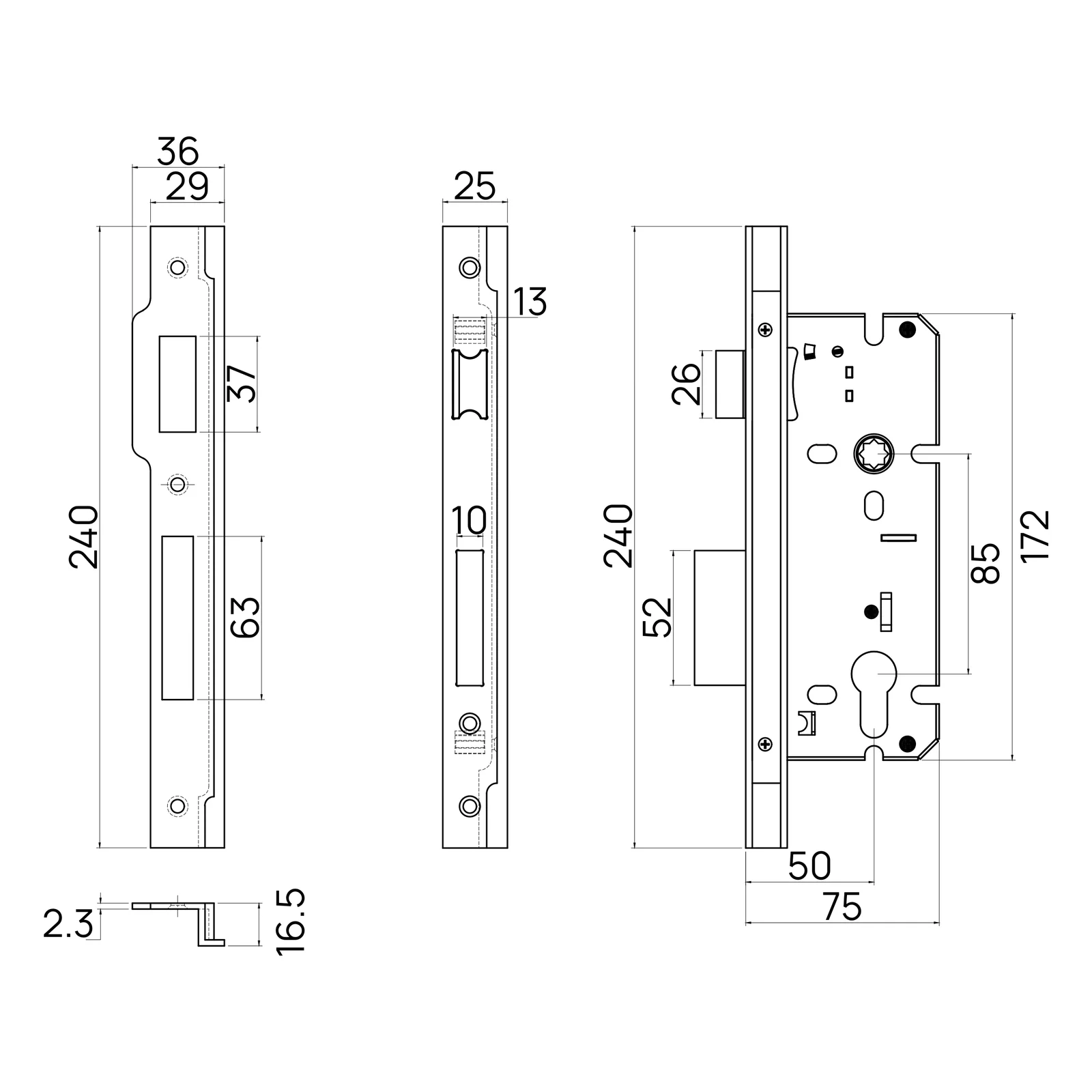

Technical diagrams

Line diagram, drawing and reference visuals

Technical specification

Specification table

Material

Front Plate	ZAMAK-3
Striker Plate	ZAMAK-3
Deadbolt	Brass \| ZAMAK-3
Latch	Brass \| ZAMAK-3
Follower	Brass \| Mild Steel \| ZAMAK-3

Production Capacity

+100000 Cylcle tested
Acetone Test Passed 1000+
SST Passed
Pencile Hardness Passed 4H+

Reference Standard

Follow BS EN 12209:2003

Note : Mortise lock are manufactured in compliance with BSEN 12209:2003 Standard

Feature

• Suitable for Double door
• Suitable for Wooden door
• Latch Operated by Handle or Cylinder
• 85mm Center Back-set in 50mm
• Reversible Latch in Solid Brass
• Double throw Deadbolt in Solid Brass | Zinc With 20mm Projection
• Suitable for Sprung and Un Sprung Lever Handle

Application

Residential Entry Doors: Provides strong main-door security using integrated deadbolts and levers.

Finish

SS | AB | Black | RG | Gold | PVD Finishes

Branding

As Per Customer Standard

Custom product requirement

Need a version for your brand?

Share your drawings, required material, finish, logo marking and packaging brief with our OEM team.

Send product requirement →
